Many of the boxes built in the 1960s had chromed steel accent strips riveted to the front of the drawer pulls. These are often found to be in poor condition (or even missing entirely, if the rivets had failed.) My 1963 KRA-300B was missing one of its drawer accents and a number of the others were pitted or gouged, so I decided to fabricate a replacement set.
I made a drawing using LibreCAD and had Big Blue Saw cut the pattern with waterjet from 5052 aluminum at 0.025" thickness. I ordered 50 units and they cost about $2.10/ea. I then spent some time dressing the edges on a wheel to clean up the burrs. I've been polishing the raw aluminum using Simichrome and a felt polishing tool in a Foredom SR flex shaft motor. To shape the pieces, I made a die by cutting a length of 0.625" ID / 1.000" OD steel tube lengthwise to create a half-round channel, and matching it to a length of 19/32" rod stock. I sandwich the aluminum piece between the two and hammer it to take the shape. I haven't started attaching the pieces to the drawers yet, but I'll be doing that with 3/32" blind rivets.

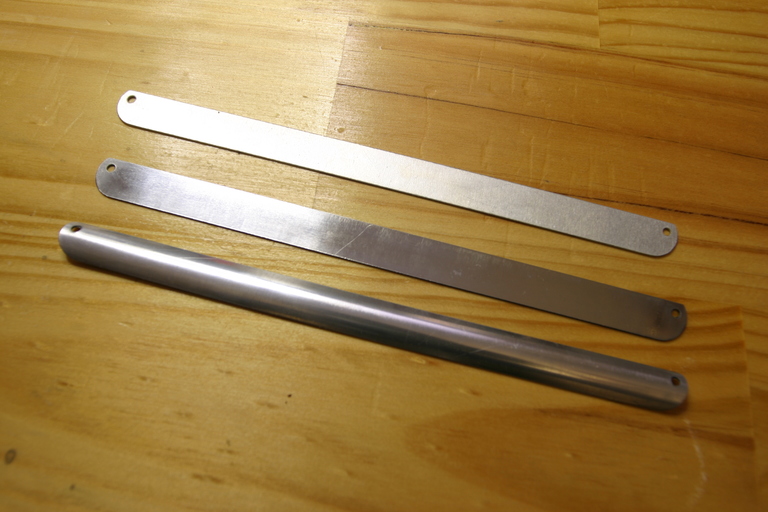

Here's a photo of the aluminum trim pieces in different stages of production (dressed, polished, and formed):
Also, here's the .dxf CAD file that I created, in case anyone wants to make their own.
--Colin
Fabricating replacement drawer trim for 1960s boxes
Forum rules
Please make sure you've read the Rules and Etiquette Page, which spells out the rules and guidelines of this forum.
Please make sure you've read the Rules and Etiquette Page, which spells out the rules and guidelines of this forum.
-
- Posts: 17
- Joined: Fri Nov 25, 2011 6:35 am
- Your Location: NH, USA
- Contact:
-
- Posts: 6
- Joined: Sun Apr 05, 2015 3:09 pm
- Your Location: Michigan
- Contact:
Re: Fabricating replacement drawer trim for 1960s boxes
Very cool. Can we see a pic installed? Thanks!
-
- Posts: 17
- Joined: Fri Nov 25, 2011 6:35 am
- Your Location: NH, USA
- Contact:
Re: Fabricating replacement drawer trim for 1960s boxes
Here's a close up and the whole box.
- Attachments
-
- snap-on_kra-300b_restored_1.jpg (185.02 KiB) Viewed 1406 times
-
- snap-on_kra-300b_restored_0.jpg (230.6 KiB) Viewed 1406 times
-
- Posts: 6
- Joined: Sun Apr 05, 2015 3:09 pm
- Your Location: Michigan
- Contact:
Re: Fabricating replacement drawer trim for 1960s boxes
Very nice indeed! Shows well with the Vette!
-
- Posts: 17
- Joined: Sat Sep 21, 2013 12:13 am
- Your Location: California
- Contact:
Re: Fabricating replacement drawer trim for 1960s boxes
I could use one of those for my KR300B. the others are in good shape. How much would you want for one? Thanks in advance for a reply..
Bob
Bob
-
- Posts: 17
- Joined: Fri Nov 25, 2011 6:35 am
- Your Location: NH, USA
- Contact:
Re: Fabricating replacement drawer trim for 1960s boxes
PM sent.spacedoutbob wrote:I could use one of those for my KR300B. the others are in good shape. How much would you want for one? Thanks in advance for a reply..
Bob
- Gregorygoard
- Posts: 2860
- Joined: Mon Apr 17, 2023 3:18 am
- Your Location: Zambia
- Contact:
Re: Fabricating replacement drawer trim for 1960s boxes
