First #6 Ratchet adapter exploded view

Post by snapy64 »

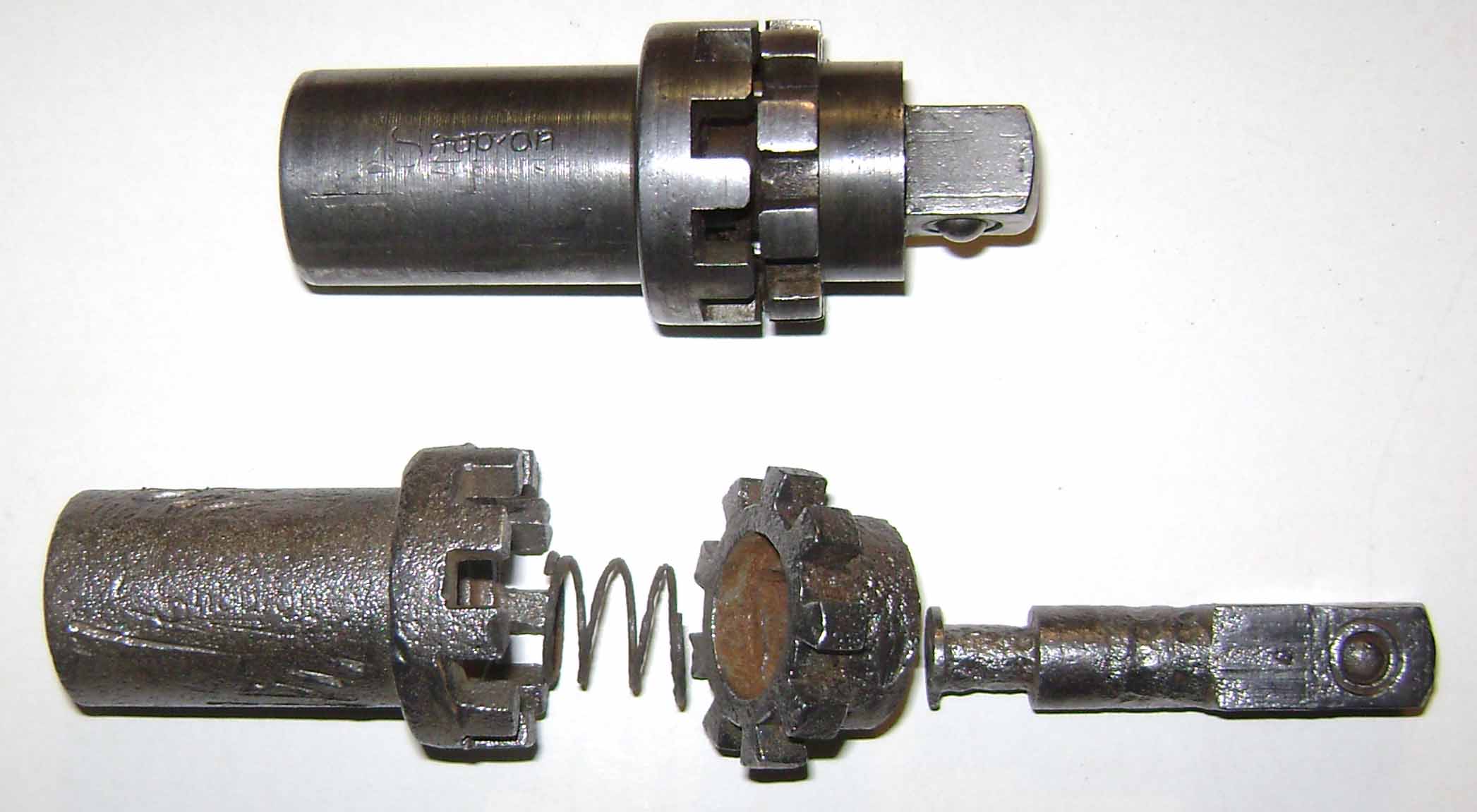

just picked up this early 1st model #6 that must have been very rusty and someone took it apart to try and clean it up but now we can see how they were assembled and shown next to a good one. These both are before the 9 tooth ones like these added the pat applied for below the Snap-on logo.
