TORQOMETER RT-250

[98Supra6spd]

I just acquired a
Torqometer RT-250
PAT. NO. 2312104
FEBRUARY 23, 1943
MEASURES 12 3/8" long
This Torue wrench comes in the Original SNAP-ON metal case measuring 13.5" long by 2 7/8" wide and is 2 5/8" tall
I assume since none of my .25" sockets or extensions fit the square end of this tool that is is a 9/32nds ratchet.
If anyone has an owners manual for this tool or any information on it I should be grateful if you shared it with me.

[rdwaaw]

9/32" drive, ratcheting, 250 in.lb. can measure torque in either direction. Made in the early 40's.

[rdwaaw]

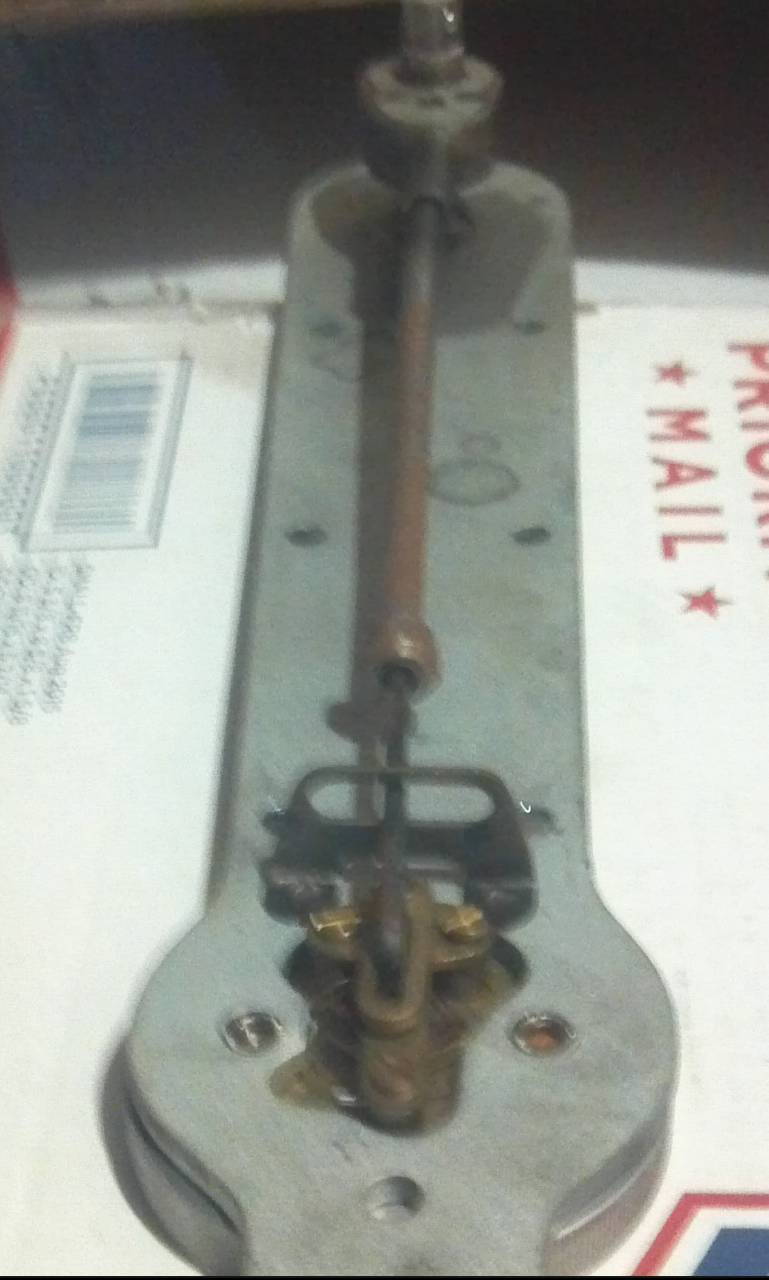

inside view of RT-250

[snapmom]

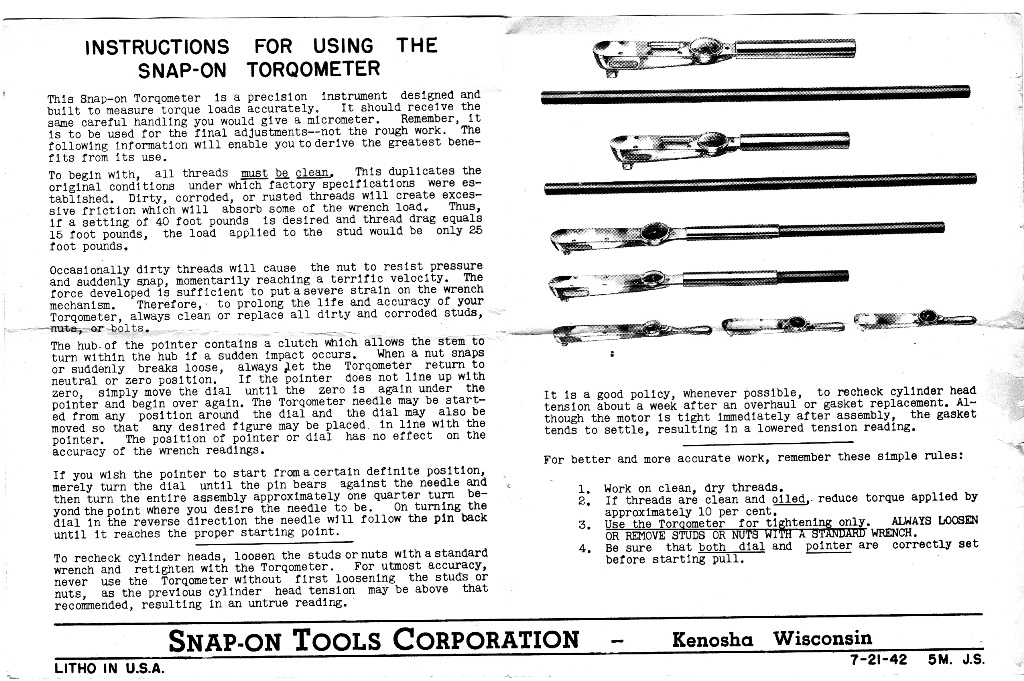

instructions
